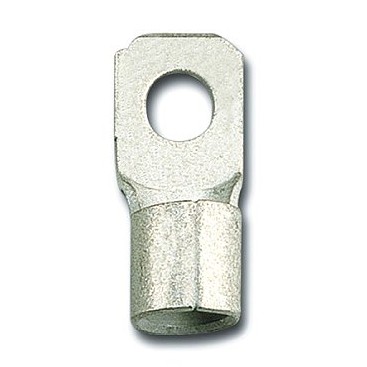

無熔絲開關方型端子
完整規格尺寸
商品編號：CB
商品簡述：
尺寸區分完整，編號及規格列於下表中。
由於產品眾多，需詳細對照選購，謝謝。
Unit:mm / inch
| ITEM NO. | ø d2 | B | L | F | E | ø D | ø d1 | t | AWG | DINmm² | Q'TY(包 | Q'TY(盒 |
| CB 38-5T | 5.3 .209 |
12.0 .472 |
36.0 1.417 |
16.0 .630 |
14.0 .551 |
13.3 .524 |
9.4 .370 |
1.8 .071 |
2 | 35 | ||
| CB 38-6T | 6.4 .252 |
|||||||||||
| CB 38-6S | 13.5 .531 |
35.0 1.378 |
15.0 .591 |
13.0 .512 |
||||||||
| CB 38-8S | 8.4 .331 |
|||||||||||
| CB 38-8 | 16.0 .630 |
37.0 1.457 |
||||||||||
| CB 38-10 | 10.5 .413 |
|||||||||||
| CB 60-8 | 8.4 .331 |
45.5 1.791 |
18.0 .709 |
18.0 .709 |
15.4 .606 |
11.4 .449 |
2.0 .079 |
1/0 | 50 | |||
| CB 60-10 | 10.5 .413 |
|||||||||||
| CB 80-8 | 8.4 .331 |
21.0 .827 |
49.0 1.929 |
19.0 .748 |
19.0 .748 |
19.4 .764 |
14.5 .571 |
2.3 .091 |
3/0 | 95 | ||
| CB 80-10 | 10.5 .413 |
|||||||||||
| CB 80-12 | 13.0 .512 |
|||||||||||
| CB 100-8 | 8.4 .331 |
22.0 .866 |
52.0 2.047 |
20.5 .807 |
20.0 .787 |
22.0 .866 |
16.4 .646 |
2.6 .102 |
4/0 | 120 | ||
| CB 100-10 | 10.5 .413 |
|||||||||||
| CB 100-12 | 13.0 .512 |
|||||||||||
| CB 125-8 | 8.4 .331 |
22.0 .866 |
54.0 2.126 |
21.0 .827 |
22.0 .866 |
24.0 .945 |
18.0 .709 |
2.8 .110 |
250 mcm |
120 | ||
| CB 125-10 | 10.5 .413 |
|||||||||||
| CB 125-12 | 13.0 .512 |
|||||||||||
| CB 150-8S | 8.4 .331 |
22.0 .866 |
61.0 2.402 |
22.0 .866 |
26.0 1.024 |
26.5 1.043 |
19.5 .768 |
3.2 .126 |
250-300 mcm |
150 | ||
| CB 150-10S | 10.5 .413 |
|||||||||||
| CB 150-12S | 13.0 .512 |
|||||||||||
| CB 150-8 | 8.4 .331 |
27.0 1.063 |
||||||||||
| CB 150-10 | 10.5 .413 |
|||||||||||
| CB 150-12 | 13.0 .512 |
|||||||||||
| CB 180-10 | 10.5 .413 |
28.5 1.122 |
65.0 2.559 |
22.0 .866 |
28.0 1.102 |
28.5 1.122 |
21.0 .827 |
3.5 .138 |
350-400 mcm |
185 | ||
| CB 180-12 | 13.0 .512 |
|||||||||||
| CB 180-16 | 17.0 .669 |
|||||||||||
| CB 200-10 | 10.5 .413 |
33.0 1.299 |
70.0 2.756 |
23.0 .906 |
31.0 1.220 |
32.5 1.280 |
24.0 .945 |
4.0 .157 |
400-450 mcm |
240 | ||
| CB 200-12 | 13.0 .512 |
|||||||||||
| CB 200-16 | 17.0 .669 |
|||||||||||
| CB 325-12 | 13.0 .512 |
37.0 1.457 |
85.0 3.346 |
32.0 1.260 |
35.0 1.378 |
37.0 1.457 |
29.0 1.142 |
4.5 .177 |
500-600 mcm |
300 | ||
| CB 325-16 | 17.0 .669 |
|||||||||||
| CB 325-18 | 19.0 .748 |
|||||||||||
| CB 325-20 | 21.0 .827 |
產品庫存：0
已販售：0
由於產品眾多，需詳細對照選購，謝謝。
